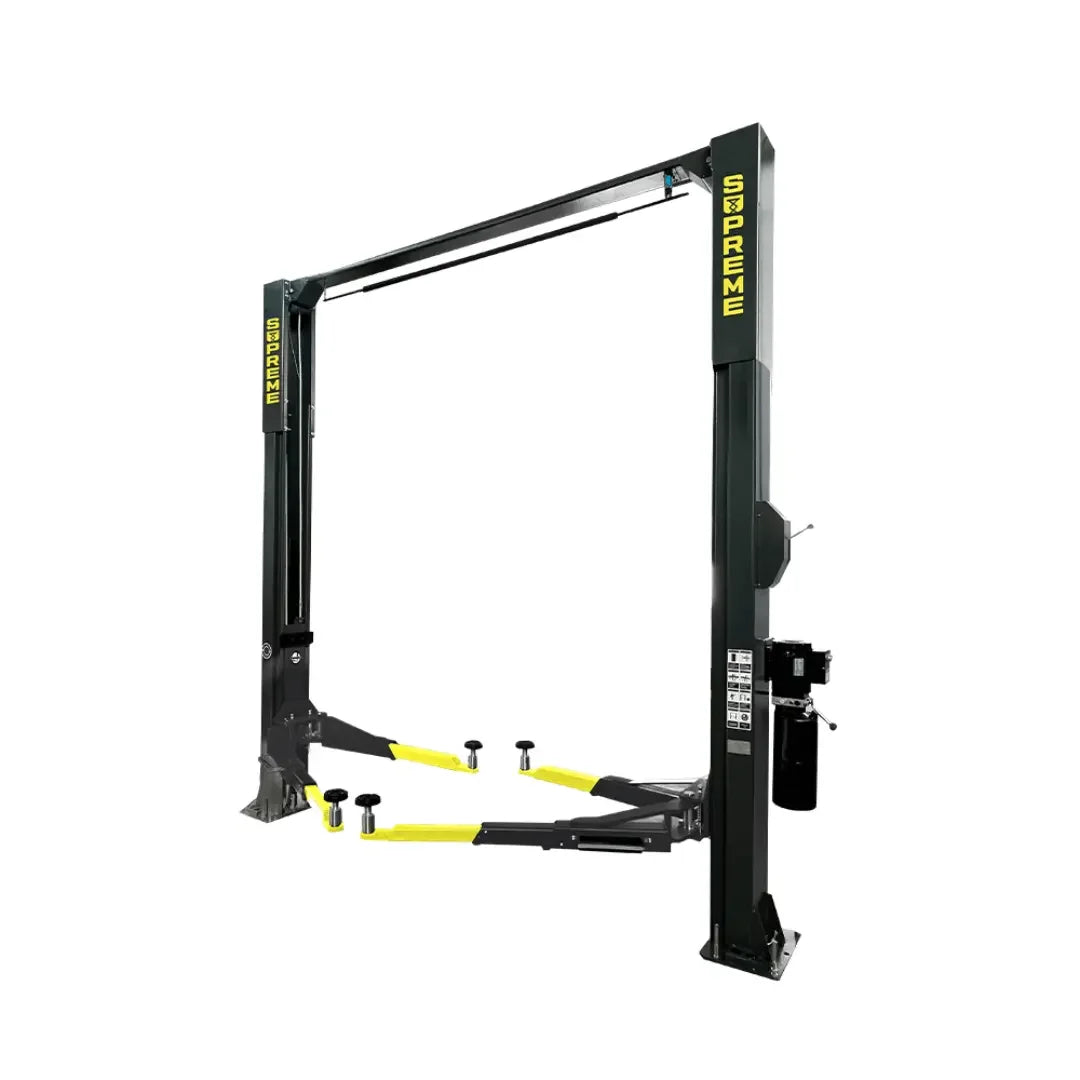

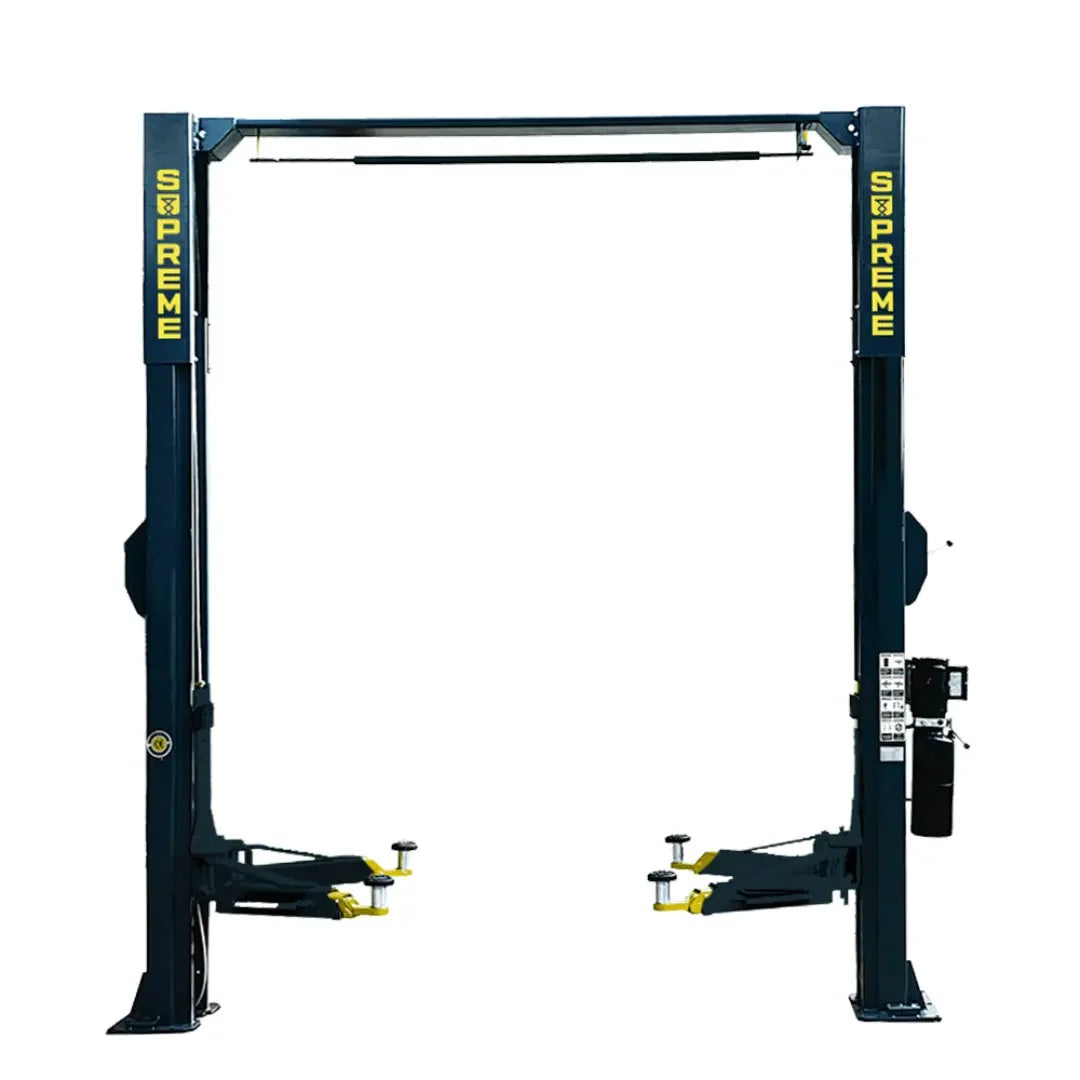

Supreme SP-10CFX 10,000 lb Clear Floor 2 Post Lift
The Supreme SP-10CFX 10,000 lb Clear Floor 2 Post Lift is a high-performance, commercial-grade solution designed for busy shops, garages, and professional service environments. With its clear floor design and strong lifting capacity, this lift offers both operational flexibility and robust support for a wide range of vehicles. Whether you're working on performance cars, light trucks, SUVs, or fleet vehicles, the SP-10CFX is built to deliver consistent, safe, and efficient lifting performance day after day.
At its core, the SP-10CFX 2 post lift is rated to lift up to 10,000lbs. This capacity makes it ideal for many medium to heavy duty vehicles, giving shops confidence to handle a broad range of work without concern for overloading. The clear floor design ensures unobstructed space beneath the vehicle, eliminating the need for overhead crossbars and allowing tools, cranes, or equipment to move freely underneath. That design element is especially valuable in workshops with overhead obstructions or where full underbody access is needed.
In its raised state, the lift reaches a maximum lifting height of 70.75", giving ample clearance to access suspension, drivetrain, and exhaust components. When lowered, the minimum height is just 3.75" above the floor, enabling low-profile vehicles or those with body kits to roll onto the platform with ease. The overall height of the lift structure is 141.25", allowing for installation in many standard ceiling environments without excessive vertical constraints.
The SP-10CFX spans 134.75" in overall width, with an inside column spacing of 195" and outside columns spaced at 120.5". The drive-through clearance between the columns is 99.75", letting wider vehicles pass through without interference. These dimensions balance strength with usability, ensuring that large vehicles fit comfortably and the lift remains stable under load.
This 2 post lift is powered by a 220V single-phase, 60 Hz motor. This power arrangement offers robust, reliable lifting behavior suited for busy shop cycles. The design includes hydraulic cylinders, cables, and safety locking systems that work together to ensure smooth lifting, even in frequent use. Safety locks engage in stepped increments as the lift rises, preventing sudden descent if pressure is lost, and the manual override ensures controlled lowering when desired.
Because of its clear floor architecture, the SP-10CFX maintains open space beneath the vehicle without overhead cross members. The baseplate across the floor between columns is strong but minimal, preserving the clear zone. This arrangement provides maximum flexibility for tools, workstations, and movement beneath the lifted vehicle and helps mitigate interference from overhead structures or cross supports.
Proper installation is critical to performance and safety. The 2 post lift must be anchored to a concrete floor with sufficient strength and thickness to handle dynamic loads. Precise alignment, leveling, and anchoring of both columns are key to ensuring even lift motion, preventing component stress or premature wear. Given the weight of the components, careful handling during setup is required to avoid damage or misalignment.
